Bottom connection
We provide two different dimensions of the display ( 63 mm & 100 mm), and various measurement ranges, according to customer specific requirements. Calibration certificates are available on request.
The casing body, the band ring and the fixing flange are made of stainless steel. The display is made of aluminium with an indelible scale in bar and psi.

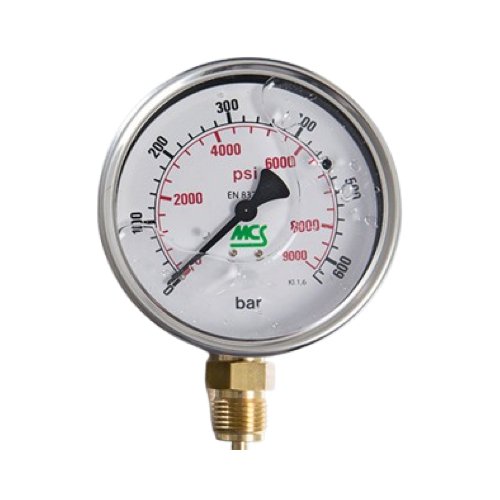

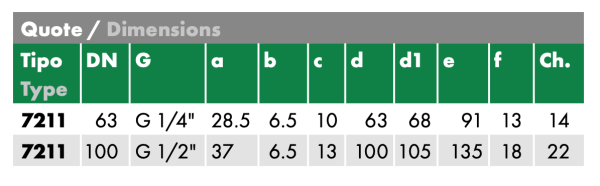

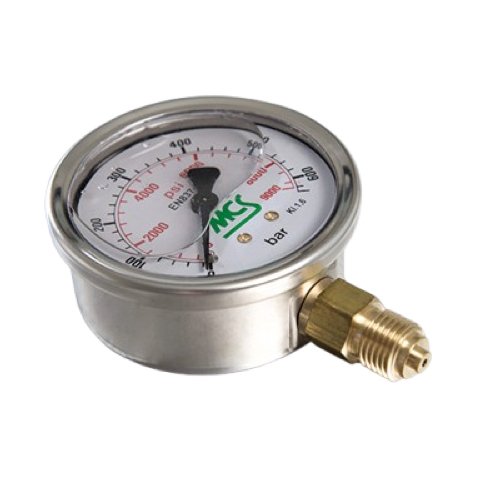

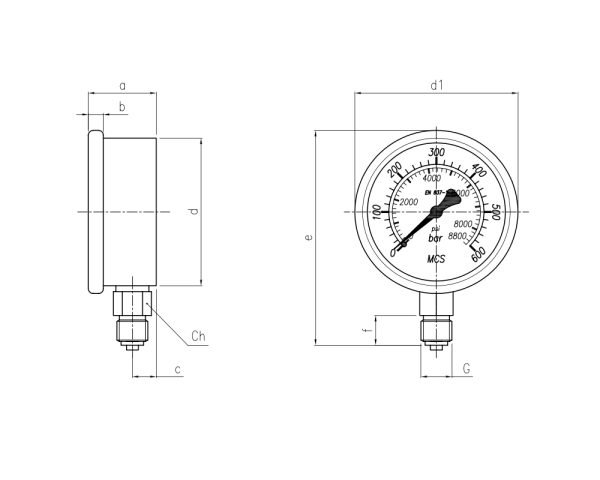

| Type | DN | G | a | b | c | d | d1 | e | f | Ch. |
|---|---|---|---|---|---|---|---|---|---|---|
| 7211 | 63 | G 1/4″ | 28.5 | 6.5 | 10 | 63 | 68 | 91 | 13 | 14 |
| 7211 | 100 | G 1/2″ | 37 | 6.5 | 13 | 100 | 105 | 135 | 18 | 22 |
